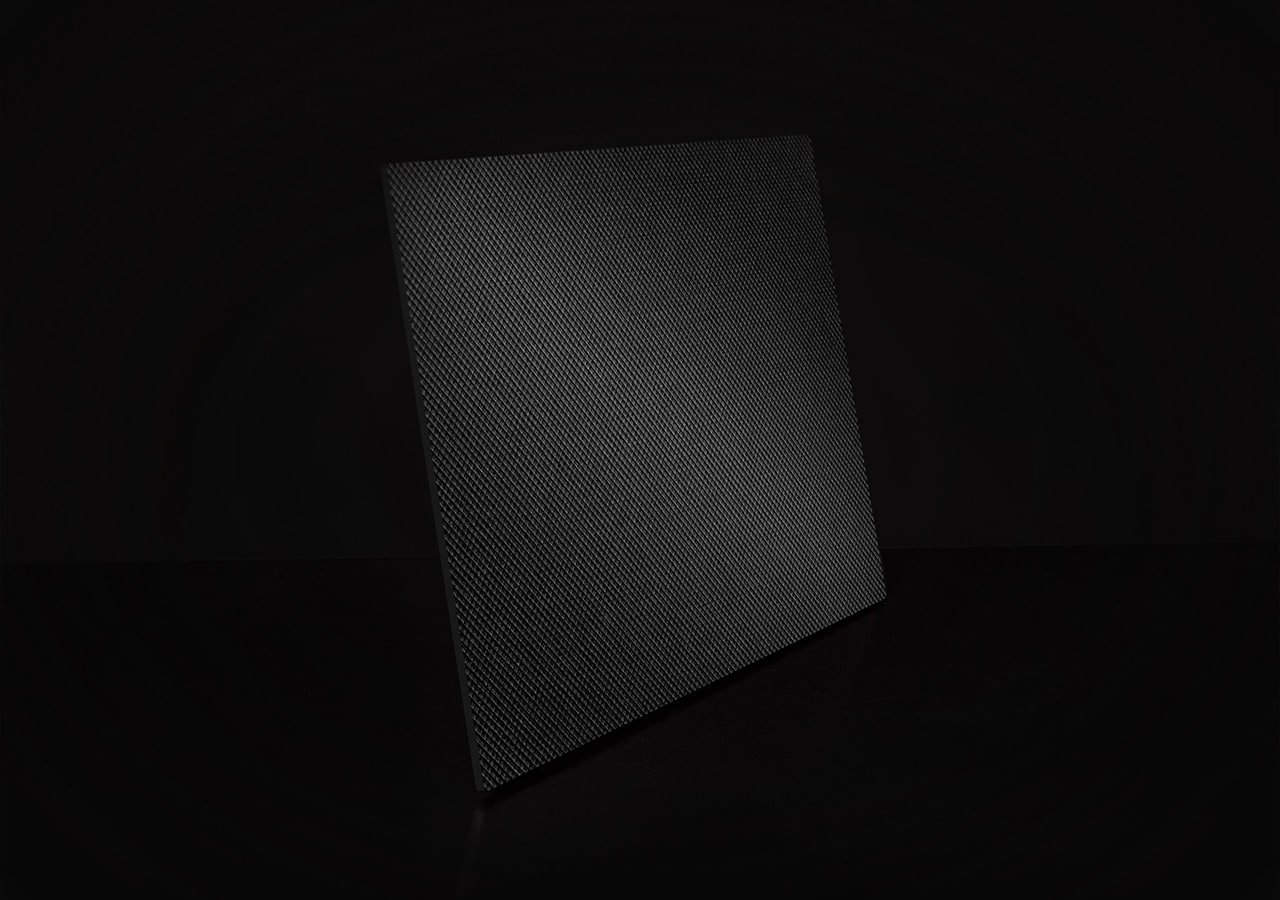

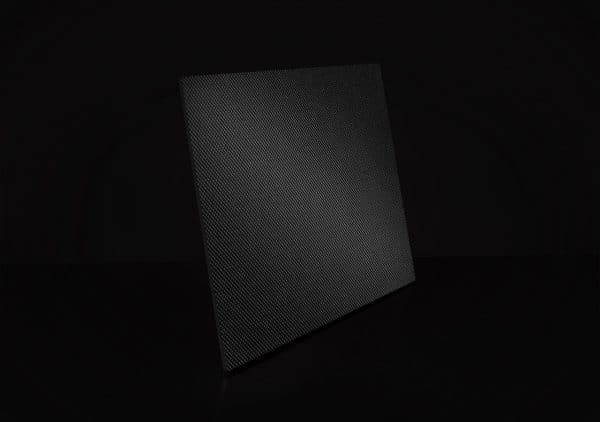

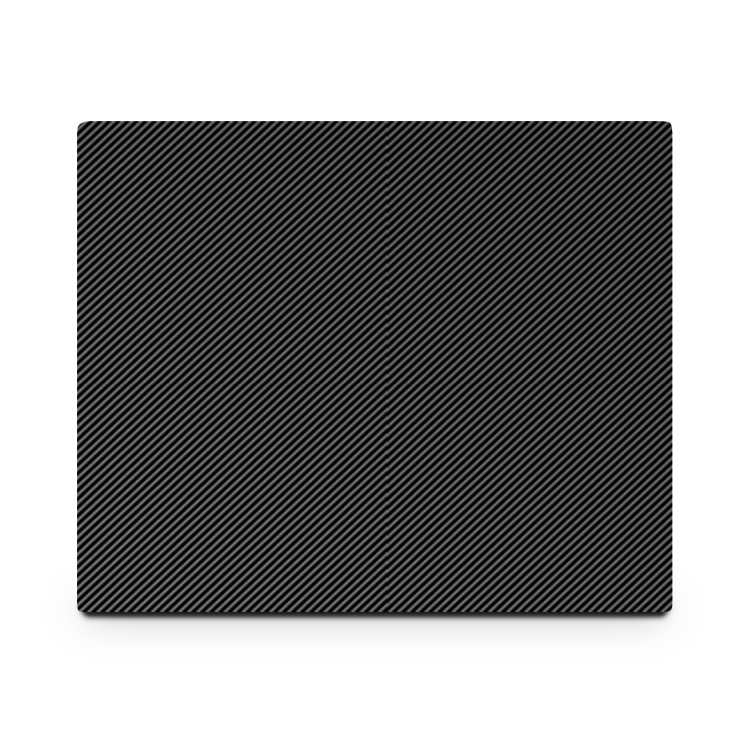

14×17 Carbon Fiber Image Plate Assembly

Manufactured by: WMDTech

The Carbon Fiber image panels are machined for the key-hole alignment of the image panel to the inner table of the scanner. Each image panel is laminated with industry-standard Flex GP Storage Phosphor image plates.

Description

WMDTech has been the sole producer and only warranty authorized manufacturer of the custom Carbon Fiber Image Panels. We have produced over 10,000 polycarbonate panels for customers all over the world. The Carbon Fiber image panels are machined for the key-hole alignment of the image panel to the inner table of the scanner. This installation process ensures proper operation even in low light conditions. Each image panel is laminated with industry-standard Flex GP Storage Phosphor image plates.

+     Precision Machined
+     .002 Mil Thick VHB holds GP S0-170 Image Plate

Technical Specs

+    Flat within .020”
+     Zero Deflection in Extreme Temps (@264 psi 220°F)
