8×14 Carbon Fiber Image Plate Assembly

Manufactured by: WMDTech

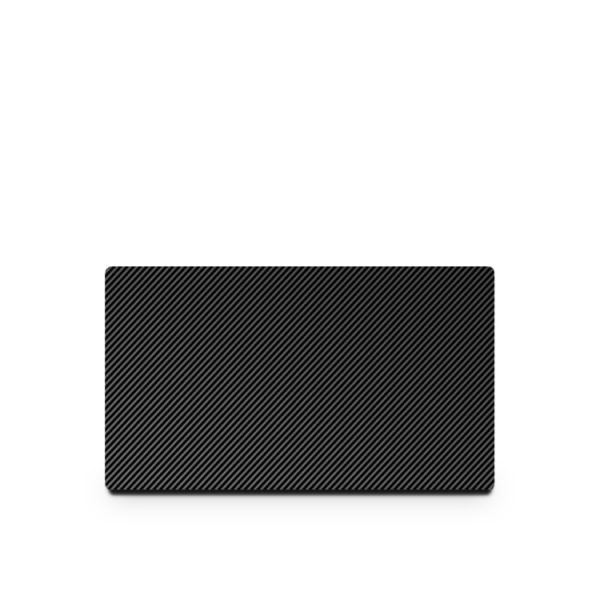

The Carbon Fiber image panels are machined for the key-hole alignment of the image panel to the inner table of the scanner.

Description

WMDTech has been the sole producer and only warranty authorized manufacturer of the NeX-Ray MMX Standard (17” in. x 14” in.) and NeX-Ray MMX – Mini (14” in. x 8” in.) custom Carbon Fiber Image Panels. We have produced over 10,000 polycarbonate panels for customers all over the world. The Carbon Fiber image panels are machined for the key-hole alignment of the image panel to the inner table of the NeX-Ray MMX. This installation process ensures proper operation even in low light conditions. Each image panel is laminated with industry-standard Flex GP Storage Phosphor image plates.

+     Precision Machined
+     .002 Mil Thick VHB holds GP S0-170 Image Plate

Technical Specs

+    Flat within .020”
+     Zero Deflection in Extreme Temps (@264 psi 220°F)
